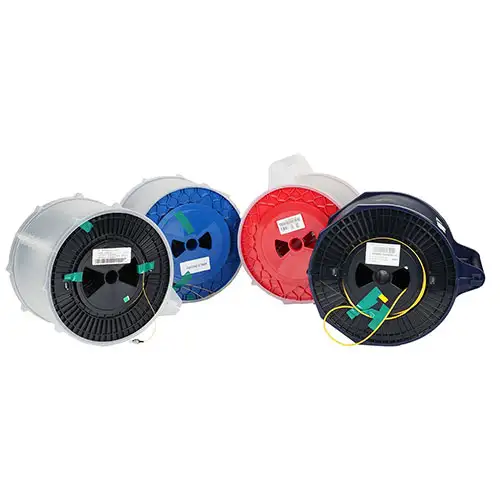

G.652/G.652.D Low Water Peak Single-mode Fiber

Request a Quote

GL FIBER® provides the whole series of SMF products that meet and even excel the requirements of standards on performance indicators. Due to the high stability, these products effectively meet the demand for high speed, large capacity, long distance and small bending radius necessary for signal transmission in different applications.
G.652.D FIBER,G657A1 FIBER,G657A2 FIBER,G657B3

Product Details

Description:

GL FIBER® low water peak dispersion unshifted Single-mode fibre is designed specially for optical transmission systems operating over the entire wavelength window from 1260 nm to 1625 nm. By suppressing the water peak that occurs near 1383 nm in conventional single mode fibre due to hydroxyl (OH-) ions absorption, GL FIBER® fibre is able to open E-band (1360-1460nm) for operation, and consequently provides 100 nm more usable wavelengths.


Applications:

Thanks to its broad usable optical spectrum and outstanding optical performance, GL FIBER® fibre is the optimum choice that supports various applications such as Ethernet, Internet Protocol (IP), Asychronous Transfer Mode (ATM), Synchronous Optical Network (SONET) and Wavelength Division Multiplexing (WDM). GL FIBER® fibre provides more bandwidth for backbone, metropolitan area and access networks.


Feature Characteristics:

1. Designed for operation over the full optical spectrum from 1260-1625 nm, which provides 50% more usable wavelengths and hence the transmission capacity is increased
2. Outstanding optical performance supporting high-speed transmission technologies such as DWDM and CWDM
3. Being compatible with existing 1310 nm equipment
4. Good protection and excellent strip force stability
5. Accurate geometrical parameters that insure low splicing loss and high splicing efficiency

Standards

GL FIBER® fibre complies with or exceeds the ITU-T Recommendation G.652.D and the IEC 60793-2-50 typeB1.3 Optical Fibre Specification. GL FIBER® tightens many parameters of fibre products so as to offer more conveniences to customers.

Specifications

Characteristics

Conditions

Specified values

Units

Optical Characteristics


Attenuation

1310nm

≤0.34

[dB/km]

1383nm(after H2-aging)

≤0.34

[dB/km]

1550nm

≤0.20

[dB/km]

1625nm

≤0.24

[dB/km]

Attenuation vs. Wavelength

Max. α difference

1285-1330nm, in reference to 1310nm

≤0.03

[dB/km]

1525-1575nm, in reference to 1550nm

≤0.02

[dB/km]


Dispersion Coefficient

1285-1340nm

-3.5 to 3.5

[ps/(nm·km)]

1550nm

≤18

[ps/(nm·km)]

1625nm

≤22

[ps/(nm·km)]

Zero Dispersion Wavelength(λ0)

--

1300-1324

[nm]

Zero Dispersion Slope(S0)

--

≤0.092

[ps/(nm2·km)]

Typical Value

--

0.086

[ps/(nm2·km]

PMD

Maximum Individual Fibre

--

≤0.1

[ps/√km]

Link Design Value(M=20,Q=0.01%)

--

≤0.06

[ps/√km]

Typical Value

--

0.04

[ps/√km]

Cable Cutoff Wavelength (λCC)

--

≤1260

[nm]

Mode Field Diameter(MFD)

1310nm

8.7-9.5

[μm]

1550nm

9.8-10.8

[μm]

Effective Group Index of Refraction(Neff)

1310nm

1.466

--

1550nm

1.467

--

Point Discontinuities

1310nm

≤0.05

[dB]

1550nm

≤0.05

[dB]

Geometrical Characteristics

Cladding Diameter

--

125.0±0.7

[μm]

Cladding Non-Circularity

--

≤1.0

[%]

Coating Diameter

--

235-250

[μm]

Coating-Cladding Concentricity Error

--

≤12.0

[μm]

Coating Non-Circularity

--

≤6.0

[%]

Core-Cladding Concentricity Error

--

≤0.6

[μm]

Curl(radius)

--

≥4

[m]

Delivery Length

--

Up to 50.4

[km/reel]

Environmental Characteristics

1310nm, 1550nm & 1625nm

Temperature Dependence Induced Attenuation

-60℃ to +85℃

≤0.05

[dB/km]

Temperature-Humidity Cycling Induced Attenuation

-10°C to +85°C, 98% RH

≤0.05

[dB/km]

Water Immersion Dependence Induced Attenuation

23°C,for 30 days

≤0.05

[dB/km]

Damp Heat Dependence Induced Attenuation

85°C and 85% RH,for 30 days

≤0.05

[dB/km]

Dry Heat Aging

85℃, for 30 days

≤0.05

[dB/km]

Mechanical Specifications


Proof Test

--

≥9.0

[N]

--

≥1.0

[%]

--

≥100

[kpsi]

Macro-bend Induced Attenuation

100 Turns Around a Mandrel of 30 mm Radius

1625nm

≤0.05

[dB]

100 Turns Around a Mandrel of 25 mm Radius

1310nm and 1550nm

≤0.05

[dB]

1 Turn Around a Mandrel of 16 mm Radius

1550nm

≤0.05

[dB]

Coating Strip Force

typical average force

1.5

[N]

peak force

1.3-8.9

[N]

Dynamic Fatigue Parameter(nd)

--

≥20

--
