Communication Optical Fibre

G654 fiber,optical fiber,bare optic fiber

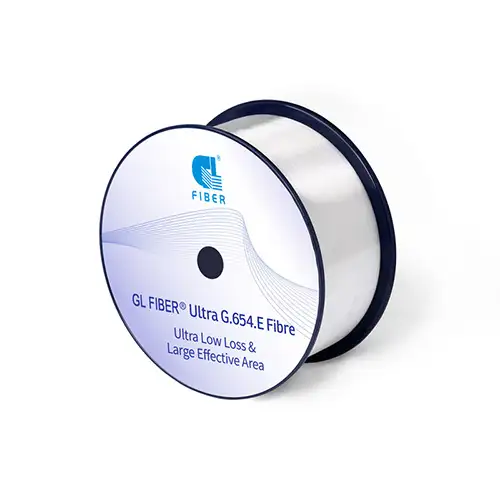

ITU-T G.654 Low-loss & Bend-insensitive Fiber
Request a Quote

GL FIBER® fibre is designed specially for long-haul optical transmission systems. It makes performance optimization in both C band (1530-1565nm) and L band (1565-1625nm). Its enlarged effective area suppresses nonlinear effect in the process and increases nonlinear tolerance for transmission system. Meanwhile GL FIBER® fibre reduces attenuation in both C band and L band. The fibre fully meets the demands for transmitting signal with high speed, high capacity and extended networking distances over one single fibre.

Applications

GL FIBER® Fiber is the ideal solution for high-performance applications, including Ethernet, IP networks, SONET, and WDM, thanks to its expansive effective area and superior low-attenuation characteristics.

GL FIBER® Fiber enhances system performance by supporting high input power and reducing power distribution density through its enlarged effective area. This design effectively suppresses nonlinear effects such as Brillouin scattering, self-phase modulation, and cross-phase modulation, making it well-suited for multi-channel DWDM systems.

Additionally, GL FIBER® Fiber delivers ultra-low signal attenuation, meeting the stringent requirements for long-haul optical transmission while providing greater system redundancy.

Standards

GL FIBER® fibre complies with or even exceeds the ITU-T G.654.B/E recommendation and IEC 60793-2-50 B1.2 Optical Fibre Specification. GL FIBER tightens many parameters of fibre products.

Characteristics

• Designed for 40G/100G/ 100G beyond large capacity, long haul Dense Wavelength Division Multiplexing (DWDM) system operation over C band (1530-1565nm) and L band (1565-1625nm)
• Large effective area reduces nonlinear effect in the transmission process, ensuring good system performance
• Lower attenuation level, which meets the demand of extended long distance transmission
• Lower bending induced loss at 1550nm and more sensitive 1625 nm window.

G.654 Fiber Specification

Performance parameter		G.654 A	G.654 B	G.654 C	G.654 D	G.654 E
Fiber character
Mode Field Diameter	wavelength	1550nm	1550nm	1550nm	1550nm	1550nm
	Core diameter	9.5～10.5um	9.5～13.0um	9.5～10.5um	11.5～15.0um	11.5～12.5um
	Tolerance	±0.7um	±0.7um	±0.7um	±0.7um	±0.7um
Cladding Diameter	Clad Diameter	125um	125um	125um	125um	125um
Cladding Diameter	Tolerance	±0.7um	±1um	±0.7um	±0.7um	±1um
Clad Non-Circularity	maximum	≦2.0%	≦2.0%	≦2.0%	≦2.0%	≦2.0%
Clad Concentricity Error	maximum	≦0.8um	≦0.8um	≦0.8um	≦0.8um	≦0.8um
Cable Cutoff Wavelength	maximum	≦1530nm	≦1530nm	≦1530nm	≦1530nm	≦1530nm
Macro bend attenuation	Number	100 turns	100 turns	100 turns	100 turns	100 turns
Macro bend attenuation	1652nm is extremely high value	0.5dB	0.5dB	0.5dB	0.5dB	0.1dB
Proof Stress	Minimal value	0.69Gpa	0.69Gpa	0.69Gpa	0.69Gpa	0.69Gpa
Chromatic Dispersion Coefficient	D1550max	20ps/(nm·km)	20ps/(nm·km)	20ps/(nm·km)	23ps/(nm·km)	23ps/(nm·km)
Chromatic Dispersion Coefficient	S1550max	0.070ps/nm²·km	0.070ps/nm²·km	0.070ps/nm²·km	0.070ps/nm²·km	0.070ps/nm²·km
Cable Attribute
Attenuation coefficient	Max. at 1550 nm	0.22dB/km	0.22dB/km	0.22dB/km	0.22dB/km	0.23dB/km
PMD coefficient	M	20 cables	20 cables	20 cables	20 cables	20 cables
	Q	0.01%	0.01%	0.01%	0.5dB	0.01%
	Max. PMDQ	0.5ps/km½	0.5ps/km½	0.5ps/km½	0.5ps/km½	0.2ps/km½
