Description:
GL FIBER® Ultra fibre is designed specifically for Fibre-To-The-Home (FTTH), enterprise network and any other applications where ultra low bending-loss at small bending radii is needed.
Application:
• All types of fibre patch cord with different structures
• High speed optical routes for Fibre-To-The-Home(FTTH) networks
• Cables with extreme low bending requirements
• Small-sized optical component
Feature Characteristics:
1. Superior to standard ITU-T G.657.B3 fibre, bending radius down to as small as 5mm and full compatibility with all G.652.D fibres
2. Low attenuation satisfying the operation demand in O-E-S-C-L band
3. Low bending loss for highly demanding cable designs including ribbons
4. Accurate geometrical parameters and large MFD which insure low splicing loss and high splicing efficiency
5. High nd value satisfying long service life in minimum bend radius
Characteristics |
Conditions |
Specified values |
Units |
|
---|---|---|---|---|
Optical Characteristics |
||||
Attenuation |
1310nm |
≤0.35 |
[dB/km] |
|
1383nm(after H2-aging) |
≤0.35 |
[dB/km] |
||
1550nm |
≤0.21 |
[dB/km] |
||
1625nm |
≤0.23 |
[dB/km] |
||
Attenuation vs. Wavelength Max. α difference |
1285-1330nm, in reference to 1310nm |
≤0.03 |
[dB/km] |
|
1525-1575nm, in reference to 1550nm |
≤0.02 |
[dB/km] |
||
Zero Dispersion Wavelength(λ0) |
-- |
1300-1324 |
[nm] |
|
Zero Dispersion Slope(S0) |
-- |
≤0.092 |
[ps/(nm2·km)] |
|
PMD |
Maximum Individual Fibre |
-- |
≤0.1 |
[ps/√km] |
Link Design Value(M=20,Q=0.01%) |
-- |
≤0.06 |
[ps/√km] |
|
Typical Value |
-- |
0.04 |
[ps/√km] |
|
Cable Cutoff Wavelength (λCC) |
-- |
≤1260 |
[nm] |
|
Mode Field Diameter(MFD) |
1310nm |
8.2-9.0 |
[μm] |
|
1550nm |
9.1-10.1 |
[μm] |
||
Effective Group Index of Refraction(Neff) |
1310nm |
1.468 |
-- |
|
1550nm |
1.469 |
-- |
||
Point Discontinuities |
1310nm |
≤0.05 |
[dB] |
|
1550nm |
≤0.05 |
[dB] |
||
Geometrical Characteristics |
||||
Cladding Diameter |
-- |
125.0±0.7 |
[μm] |
|
Cladding Non-Circularity |
-- |
≤0.7 |
[%] |
|
Coating Diameter |
-- |
235-245 |
[μm] |
|
Coating-Cladding Concentricity Error |
-- |
≤12.0 |
[μm] |
|
Coating Non-Circularity |
-- |
≤6.0 |
[%] |
|
Core-Cladding Concentricity Error |
-- |
≤0.5 |
[μm] |
|
Curl(radius) |
-- |
≥4 |
[m] |
|

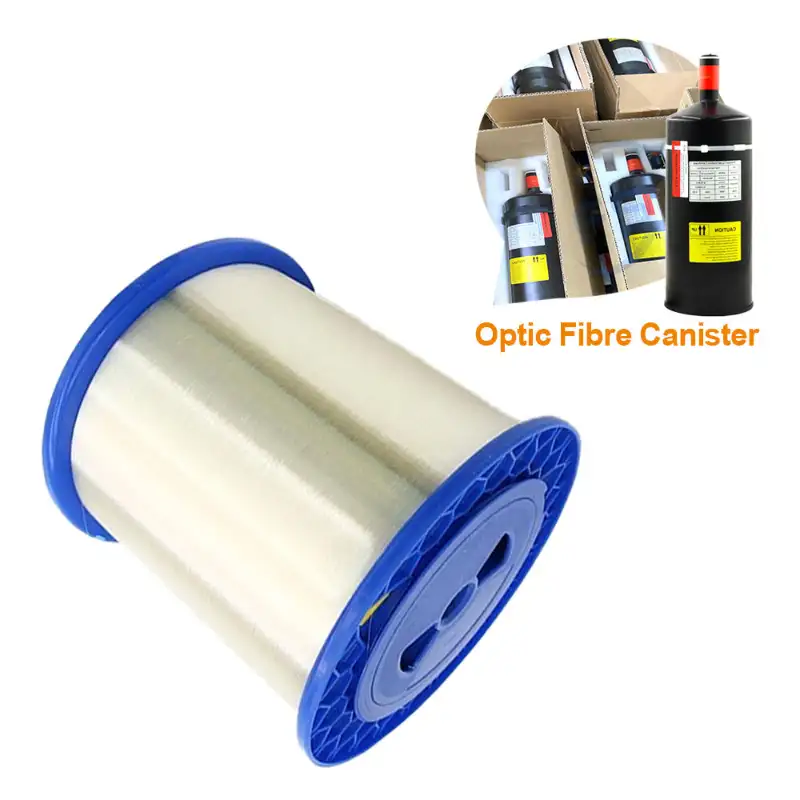

Delivery Length |
-- |
Up to 25.2 |
[km/reel] |
|
Environmental Characteristics |
1310nm, 1550nm & 1625nm |
|||
Temperature Dependence Induced Attenuation |
-60℃ to +85℃ |
≤0.05 |
[dB/km] |
|
Temperature-Humidity Cycling Induced Attenuation |
-10°C to +85°C, 98% RH |
≤0.05 |
[dB/km] |
|
Watersoak Dependence Induced Attenuation |
23°C,for 30 days |
≤0.05 |
[dB/km] |
|
Damp Heat Dependence Induced Attenuation |
85°C and 85% RH,for 30 days |
≤0.05 |
[dB/km] |
|
Dry Heat Aging |
85℃,for 30 days |
≤0.05 |
[dB/km] |
|
Mechanical Specification |
||||
Proof Test |
-- |
≥9.0 |
[N] |
|
-- |
≥1.0 |
[%] |
||
-- |
≥100 |
[kpsi] |
||
Macro-bend Induced Loss | 1 Turn Around a Mandrel of 10 mm Radius | 1550nm | ≤0.03 | [dB] |
1 Turn Around a Mandrel of 10 mm Radius |
1625nm |
≤0.1 |
[dB] |
|
1 Turn Around a Mandrel of 7.5 mm Radius |
1550nm |
≤0.08 |
[dB] |
|
1 Turn Around a Mandrel of 7.5 mm Radius |
1625nm |
≤0.25 |
[dB] |
|
1 Turns Around a Mandrel of 5 mm Radius |
1550nm |
≤0.15 |
[dB] |
|
1 Turns Around a Mandrel of 5 mm Radius |
1625nm |
≤0.45 |
[dB] |
|
Coating Strip Force |
typical average force |
1.5 |
[N] |
|
peak force |
1.3-8.9 |
[N] |
||
Dynamic Fatigue Parameter(nd) |
-- |
≥20 |
-- |
