Communication Optical Fibre

Single Mode Bare Optical Fiber,G.657A2 Optical Fiber,FPV Drone fiber

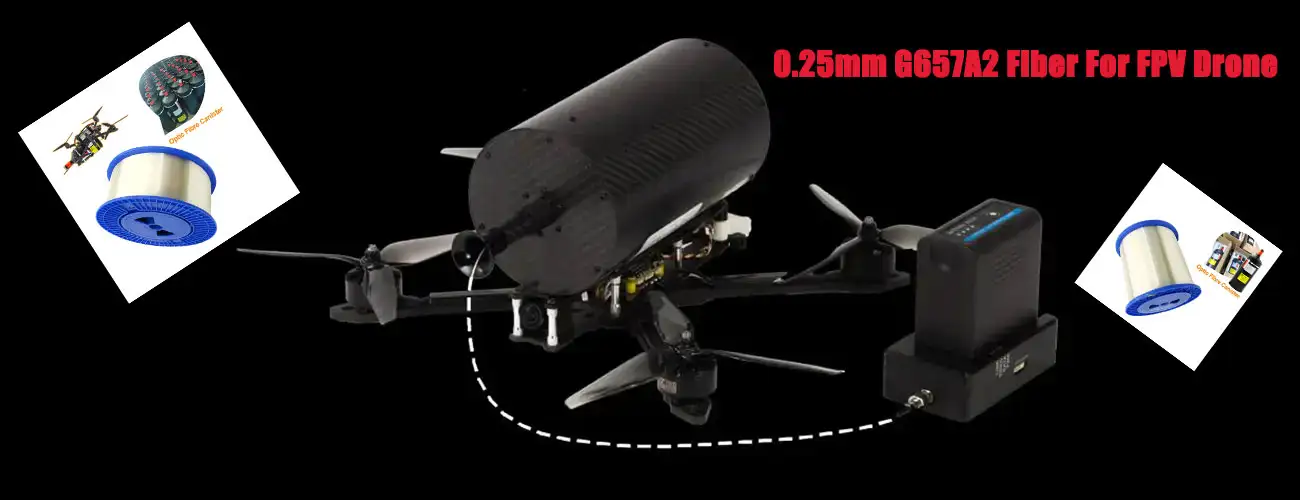

Single Mode Bare Optical Fiber Spool G.657A2 Optical Fiber For FPV Drone
Request a Quote

GL FIBER® Plus bending insensitive single-mode fibre combines two attractive features: excellent low macro-bending sensitivity and low water-peak level. It is comprehensively optimized for use in O-E-S-C-L band (1260 -1625 nm). The GL FIBER® Plus's bending insensitive feature not only guarantees L-band applications but also allows for easy installation without excessive care when storing the fibre especially for FTTH networks application. Bending radii in fibre guidance ports can be reduced as well as minimum bend radii in wall and corner mountings.

Product Description

1. Our Single Mode Bare Optical Fiber Spool G.657A2 optical fiber for sale, is also called an extended wavelength band dispersion unshifted single-mode optical fiber. It adopts advanced rod-making process and drawing process, which reduces the water peak loss at 1383nm, extends the working wavelength to E-band (1360nm-1460nm), and realizes the full-band transmission of O, E, S, C and L(1260nm-1625nm). At the same time, through the advanced PMD rubbing equipment, the stable and superior polarization mode dispersion coefficient can be realized in high-speed production, which can meet the long-distance and high-speed transmission.

2. Non-dispersion-shifted single-mode fiber with extended wavelength band adopts ultraviolet curing technology and uses double-layer acrylic resin coating which is insensitive to bending loss, which has a good protective effect on fiber cladding and meets the application in different occasions. The optical fiber adopts advanced coating curing technology to provide superior dynamic fatigue resistance and increase the service life of the optical fiber.

3. The optical fiber is suitable for all kinds of optical cable structures, and the main structural optical cables include: Ribbon cable、FTTH drop fiber cable、Central loose tube optical cable、Tightly sleeve optical cable、ADSS optical cable、Submarine optical cable, Etc.

Main Features

Our Single Mode Bare Optical Fiber Spool G.657A2 optical fiber for sale, has small polarization mode dispersion, low long wavelength attenuation, excellent bending resistance and large transmission bandwidth, and is suitable for various transmission technologies and systems.

a. Realize O, E, S, C and L(1260nm-1625nm) full-band transmission, and increase transmission bandwidth;
b. Flexible selection of various coatings to meet the needs of different applications;
c. Low polarization mode dispersion coefficient, meeting the requirements of high-speed transmission;
d. Excellent dynamic fatigue resistance, suitable for use in different environments.

G.657A2 Specification

Bare Fiber
G.657.A2	0.27mm-0.3mm
