Armored Fiber Optic Cable

Steel Wire Armoured fiber cable,double armored fiber optic cable

Steel Wire Armored Fiber Cable For Direct Burry Ground

Request a Quote

Ground Armored cable is an indoor/outdoor cable for LAN, MAN and WAN backbones for mixed indoor and outdoor installation. The cable is suitable for direct burial, installation in ducts and underwater application. The steel wire armouring makes the cable rodent proof. it is steel wires armored to be suitable for installation in harsh environment, Ground Armored able can also be direct buried underground. With loose tube technology which makes the fibers good secondary excess length and allows the fibers free movement in the tube. These features keep the fiber stress free while the cable is subjected for longitudinal stress. Optimum mechanical protection such as high tensile, crush and impact resistant performances are achieved by the steel wire armor and the double jacket structure.
Steel Wire Armoured fiber cable,double armored fiber optic cable

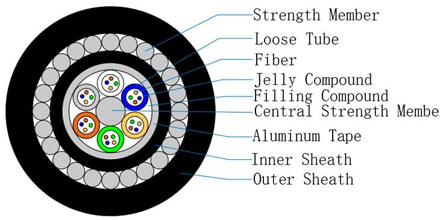

Cable Section

Applications

1. Underwater use,
2. Direct buried underground Application,

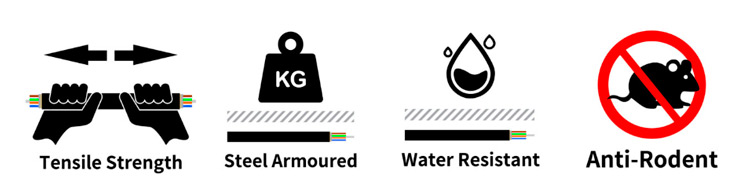

Main Features

1. Full-section water-blocking structure ensures good water and moisture re sistance

2. The loose tube is filled with special grease to critically protect the fiber
3. The phosphating steel wire center reinforcement member has high modulus and corrosion resistance
4. Vertically wrapped double-sided wrinkled aluminum strip, fine round wire wrapped around the package to ensure the mechanical compression, tensile, anti rodent , elastic energy of the c able, to meet the application requirements of vertical burying and underwater laying
5. The product has a service life of more than 30 years

Standards

Comply with standard IEC 60794-1.

Technical Parameters

Fiber Count
Structure Fibers Per Tube Loose Tube Diameter (mm) CSM Diameter/Pad Diameter (mm)

Crush Resistance

Long/Short Term N/100MM

Nominal Thickness of Outer Jacket ( mm) Cable Diameter (mm) Cable Weight (kg/km)
12 1+5 6 1.7±0.1 1.4/1.4 5000N/100mm 1.8 13.0±0.5 270
24 1+5 6 1.7±0.1 1.4/1.4 5000N/100mm 1.8 13.0±0.5 271
36 1+6 6 1.7±0.1 1.8/1.8 5000N/100mm 1.8 13.0±0.5 292
48 1+5 12 2.0±0.1 1.4/1.4 5000N/100mm 1.8 13.7±0.5 295
72 1+6 12 2.0±0.1 2.0/2.0 5000N/100mm 1.8 14.4±0.5 335
96 1+8 12 2.0±0.1 1.8/3.5 5000N/100mm 1.8 16.0±0.5 389
144 1+12 12 2.0±0.1 1.8/6.3 5000N/100mm 1.8 19.4±0.5 601

Packing & Shipping

Cable Type   Length (M) Fiber Count Outer Diameter (mm)
  1000M 2000M 3000M 4000M 5000M
GYTA33 Net Weight (kg) 115 230 345 460 575 2-60 fibers 10.5mm
Gross Weight (kg) 130 260 390 520 650
Reel Size (cm) 60*60 80*70 100*70 110*70 120*70
Net Weight (kg) 125 250 375 500 625 62-72 fibers 11.8mm
Gross Weight (kg) 145 275 405 535 665
Reel Size (cm) 70*60 90*70 100*70 120*70 120*80
Net Weight (kg) 185 370 555 740 925 74-96 fibers 13.5mm
Gross Weight (kg) 200 400 600 800 1000
Reel Size (cm) 80*70 100*70 120*70 130*80 140*80
Net Weight (kg) 270 540 810 1080 1350 144 fibers 16mm
Gross Weight (kg) 300 600 900 1200 1500
Reel Size (cm) 90*70 120*70 140*80 150*80 160*80
Net Weight (kg) 320 640 1920     288 fibers 20mm
Gross Weight (kg) 350 700 560    
Reel Size (cm) 110*70 140*80 160*80    

Above reel size is: diameter * width (cm)

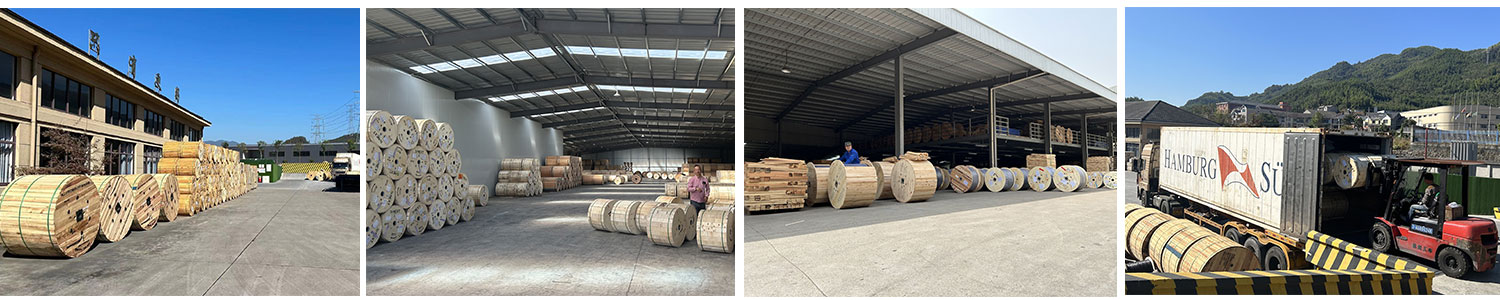

Fiber Cable Packing & Shipping
