Indoor Fiber Optic Cable

GJFJV Tight Buffer Fiber Simplex Indoor Cable
Request a Quote

GL FIBER' GJFJV Tight Buffer Fiber Simplex Indoor Cable is made by evenly applying strands of Aramid yarns as the strength member over ф900μm or ф600μm tight buffer fibers and then is completed with PVC(LSZH) jacket. We support OEM service, For special request, Pls contact with our sales & technical teams.

Product Details

GJFJV indoor fiber optic cable is made by evenly applying strands of Aramid yarns as the strength member over ф900μm or ф600μm tight buffer fibers and then is completed with PVC(LSZH)jacket.

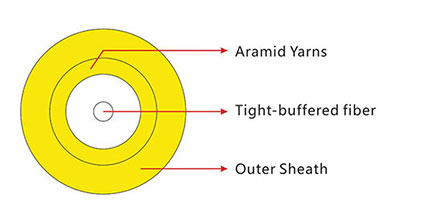

Cable Section:

Application:

·Data Communication
·Making connector
·Installation: Riser,Plenum,inter-layer,pipe & trunking
·Located in where waterproof isn't strictly required
·Patch cord, Pigtail & Indoor distribution

Main Features:

1. Good uniformity of the outer diameter of tight buffer fiber and excellent strippability.
2. Good performance of flame-retardant
3. Steady performance both in extremely high and low temperature.
4. Excellent geometrical dimension of the fiber.

Standards

GL FIBER' GJFJV cable complies with Standard YD/T1258.2-2003、ICEA-596、GR-409、IEC794, And meets with the requirements of UL approval for OFNR and OFNP.

Optical Fiber Specification

G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm			≤3.0dB/km	≤3.0dB/km
	@1300nm			≤1.0dB/km	≤1.0dB/km
	@1310nm	≤0.36dB/km	--
	@1550nm	≤0.22dB/km	≤0.23dB/km
Bandwidth （Class A）	@850			≥500MHZ·km	≥500MHZ·km
Bandwidth （Class A）	@1300			≥1000MHZ·km	≥600MHZ·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength		≤1260nm	≤1480nm

Cable Technial Parameters

SXC-III	SXC-II	SXC-I
Cable Diameter	2.8±0.2mm	2.0±0.2mm	1.6±0.2mm
Cable Weight	6.9kg/km	5.9kg/km	4.0kg/km
Tight Buffer Fiber Diameter	900±50μm	900±50μm	600±50μm

ensile Strength	Long-term	80N	60	50
ensile Strength	Short-term	150N	120	100
Crush Resistance	Long-term	100N/100mm	100N/100mm	100N/100mm
Crush Resistance	Short-term	500N/100mm	500N/100mm	500N/100mm
Bending Radius	Dynamic	20XD	20XD	20XD
Bending Radius	Static	10XD	10XD	10XD

Environmental Characteristics

Transport Temperature	-20℃～﹢60℃
Storage Temperature	-20℃～﹢60℃
Installation Temperature	-5℃～﹢50℃
Operating Temperature	-20℃～﹢60℃

Please send us your detailed requirements, We will give you a valid quotation within 12 hours!
