GDTS Hybrid Optical and Electrical Stranded Loose Tube Cable

Request a Quote

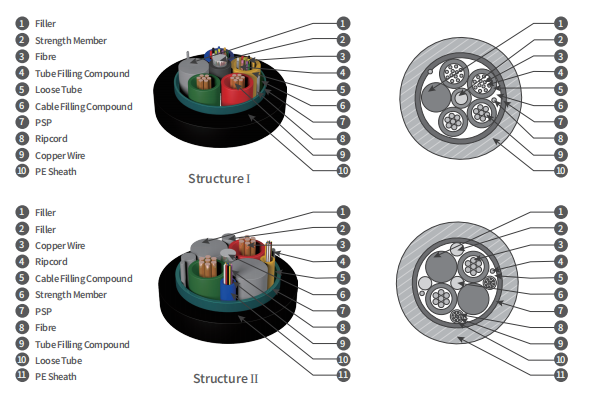

Cable Section:

Features:

1. Low dispersion and attenuation
2. Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental properties
3. The armoring of corrugate steel tape make cable have nice properties of moisture resistance and crush resistance
4. The jacket also can be made PE

Technical Characteristics:
1. The unique second coating and stranding technology provide the fibres with enough space and bending
endurance, which ensure good optical property of the fibres in the cable
2. Accurate process control ensures good mechanical and temperature performance

3. High quality raw material guarantees the long service life of cable

Application:

Overhead/Underground/Pipe

Type	O.D.(mm)	Weight(Kg/km)	Tensile strengthLong/short term (N)	CrushLong/short term(N/100mm)	Structure
GDTS-02-24Xn+2×1.5	11.6	157	600/1500	300/1000	Structure I
GDTS-02-24Xn+2×2.5	12.5	190	600/1500	300/1000	Structure I
GDTS-02-24Xn+2×4.0	14.6	241	600/1500	300/1000	Structure II
GDTS-02-24Xn+2×5.0	15	282	600/1500	300/1000	Structure II
GDTS-02-24Xn+2×6.0	15.7	300	600/1500	300/1000	Structure II
GDTS-02-24Xn+2×8.0	16.9	383	600/1500	300/1000	StructureII
GLHY-02-4Xn+2*1.5	9	150	200/600	300/1000	Structure I
GLHY-02-4Xn+2*2.5	11	173	200/600	300/1000	Structure I

Note:

1. Xn refers to fibre type.
2. 2*1.5/2*2.5/2*4.0/2*6.0/2*8.0 indicates the number and size of copper wires.
3. Hybrid cables with different numbers and sizes of copper wires can be provided on request.
4. Hybrid cables with different fibre counts can be provided on request.

Electrical Performance of Conductor:

Cross section(mm2)	Max. DC resistance ofsingle conductor(20 ℃)(Ω/km)	Insulation resistance (20℃)(MΩ.km)	Dielectric strength KV, DC 1minDielectric strength KV, DC 1min
		Between each conductor and othermetal members connected in cable	Betweenconductors	Between conductorand metallic armor	Between conductorand steel wire
1.5	13.3	No less than 5,000	5	5	3
2.5	7.98
4	4.95
5	3.88
6	3.3
8	2.47

Environmental Characteristic：
• Transport/storage temperature: -40℃ to +70℃

Delivery Length：
• Standard length: 2,000m; other lengths are also available.

GL FIBER provides a full range of customized fiber optic cable packaging solutions carefully matching your unique needs.

Starting with customized packaging printing, your brand LOGO, safety warnings or specific information can be printed directly on the packaging carton boxes and packaging spool, which not only enhances the brand image, but also ensures the accuracy and efficiency of on-site identification.

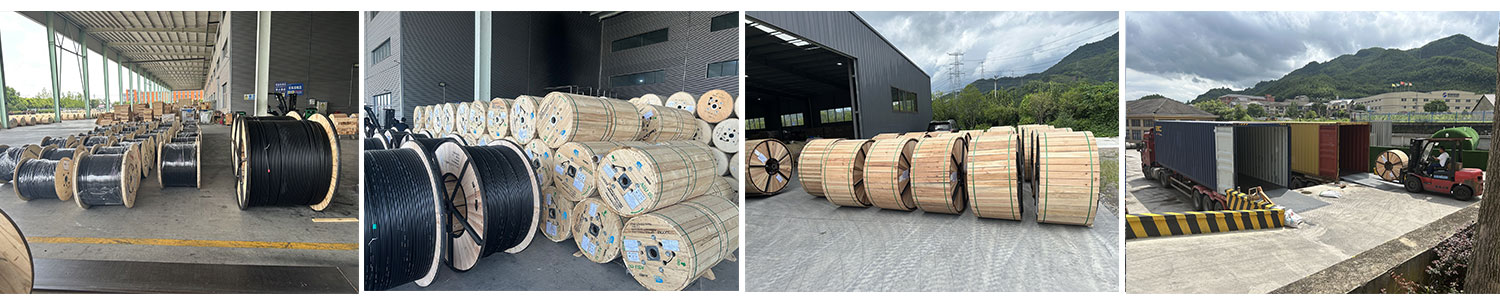

Whether it is wooden reel that pursue natural texture and environmental protection concepts, or iron reel that emphasize sturdiness and durability, we present them all to ensure the best protection of optical cables during transportation and storage.

Besides, for large-scale deployment and international transportation needs, we provide flexible container packaging options - whether it is a standard 20-foot container, suitable for compact space and flexible deployment; or a spacious 40-foot container, which can meet the needs of large-scale projects. With 21 years of export experience, our mature logistics team can not only help customers correctly calculate the number of containers to be loaded, but also effectively help customers save shipping costs and ensure that the fiber optic cables arrive in a timely and safe. Our logistics services have been well received by customers.
