1728 Count High-Density Fiber Optic Cable for Data Centers & Telecom

Request a Quote

Designed for extreme density, the 1728-count ribbon fiber cable ensures efficient splicing and optimal performance for large-scale telecom networks. Ribbon fiber cable is designed for high-density fiber optic networks that require maximum efficiency, compact design, and simplified splicing. Unlike traditional loose-tube or tight-buffered fiber, ribbon fiber bundles multiple fibers into flat, ribbon-like structures that can be mass-fusion spliced at once. This makes installation faster, reduces labor costs, and improves overall network performance.

Ideal for data centers, telecommunications, backbone networks, and large-scale fiber deployments, ribbon fiber cable supports high fiber counts while maintaining a smaller overall footprint. The cable is engineered for durability, offering excellent mechanical strength, bend performance, and protection against environmental conditions.

With its ability to handle large volumes of data traffic, ribbon fiber cable is a preferred solution for growing bandwidth demands in modern applications such as 5G, cloud computing, and enterprise connectivity. Available in singlemode and multimode configurations, it ensures low-loss, high-speed transmission over long distances.
ribbon cable,ribbon fiber cable,high density fiber cable

Product Details

GL FIBER 1728 Count High-Density Fiber Optic Cable offer the ultimate combination of fiber density and ease-of-use in extreme fiber count outside plant cabling.

Providing fibers in an extreme density design, flexible subunits containing groups of 288 fibers can be easily routed directly into hardware without furcation. Each subunit is finger-peelable and contains four waterblocking yarns that act as ripcords, enabling rapid access to the ribbons for faster termination.


This cable features a specially formulated low-friction PE jacket material optimized for jetting performance into duct systems. The cable construction design to minimize cable diameter, allowing for smaller duct applications.

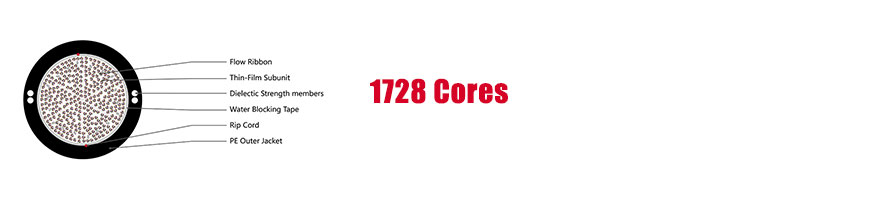

Cable Section

Application

Outdoor Duct Applications

Feature Characteristics

Unique subunit design

Flexible, finger-peelable subunits provide protection of each 288-fiber ribbon stack, eliminating the need for furcation when routing directly into hardware and enabling individual access to each ribbon for efficient management in splice trays.


Complete gel-free design
No messy filling or flooding compounds mean elimination of time, labor and risk associated with cleaning ribbons, enabling cleaner work areas, simplified splice preparation and less installer error.

Standard

ROSH: Free of hazardous substances according to RoHS 2011/65/EU
Common Installations: Designed for Duct Applications
Design and Test Criteria: ANSI/ICEA S-87-640, Telcordia GR-20

Specifications

Product Number 1728 Cound Ribbon Cable
Installation Methods Duct
Cable Type Ribbon
Environment Outdoor
Product Type Dielectric
Fiber Category Bend-improved SM (OS2)
Cable geometry Round

Environmental Conditions
Temperature Range, Installation -20 °C  to  70 °C    (-4 °F  to  158 °F    )
Temperature Range, Operation -40 °C  to  70 °C    (-40 °F  to  158 °F    )
Temperature Range, Storage -40 °C  to  70 °C    (-40 °F  to  158 °F    )


Cable Design

Cable Marking Print in ft with SOCC
Fiber Count 1728
Number of Ripcords 2
Fiber Coloring Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
Outer Jacket Color Black
Outer Jacket Material Polyethylene (PE)
Tensile Strength Elements and/or Armoring - Layer 1 Dielectric strength members
Tape Water-swellable
Subunit Color Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
Number of Subunits 6
Ribbons per Subunit 16 (12 F x 4 Ribbon / 24 F x 8 Ribbon / 12 F x 4 Ribbon)
Fibers per Subunit 288


Mechanical Specifications

Max. Tensile Strength, Long-Term 890 N (200.08 lbf)
Max. Tensile Strength, Short-Term 2700 N (606.98 lbf)
Nominal Outer Diameter 26 mm  (1.02 in )
Min. Bend Diameter Operation 780 mm (30.71 in)
Min. Bend Diameter Installation 780 mm (30.71 in)


Optical Characteristics

Fiber Code Z
Performance Option Code 01
Fiber Category OS2
Fiber Type Single-mode (OS2) / 250 µm
Fiber Name Bend-Improved Single-mode (OS2)
Maximum Attenuation 0.4 dB/km / 0.4 dB/km / 0.3 dB/km
Wavelengths 1310 nm / 1383 nm / 1550 nm
Fiber Compliance ITU-T G.652.D and ITU-T G.657.A1


Dimensions

Cable Weight 481.91 kg/km (323.83 lb/1000 ft)
