GJYXFH03 Indoor Multi Purpose Distribution Fiber Optic Cable

Request a Quote

Hunan GL Technology Co., Ltd Supply 1, 2, 4 Cores GJYXFH03 Indoor Multi Purpose Distribution Fiber Optic Cable With Factory Price, Support OEM, Complied with IEC 60794-4、 IEC 60793、TIA/EIA 598 A standards.
duct bow-type drop cable,duct drop cable,drop fiber optic cable,drop cable supplier

Product Details

Description:

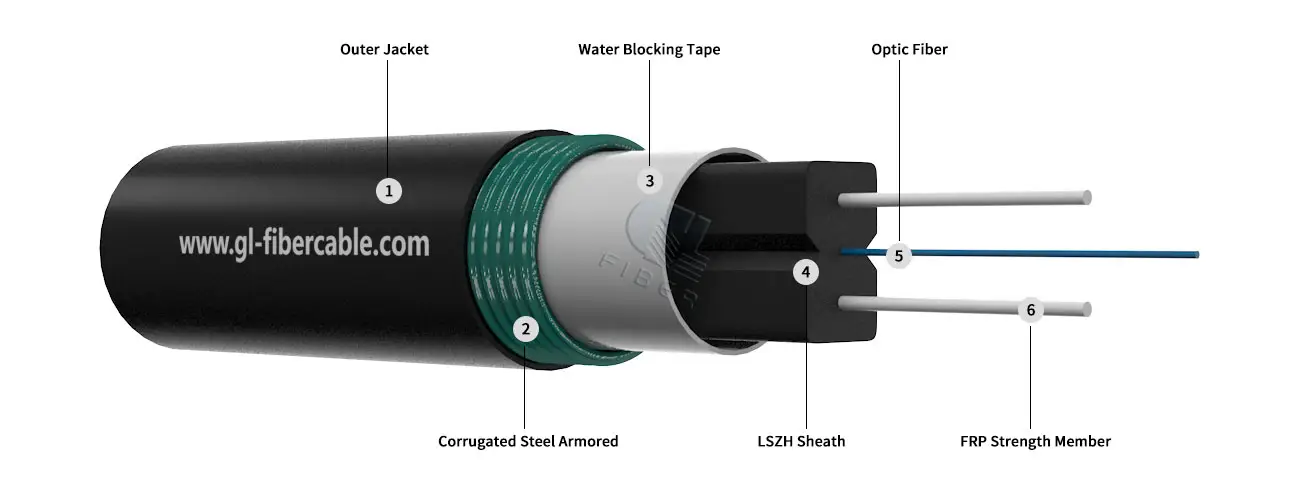

The typical GJYXFH03 duct bow-type drop cable is composed of GJXFH cable in the middle and two strength members on both sides, longitudinal wrapped by steel tape and HDPE sheath.


Cable Section:

Application:

1. Suitable for aerial and duct drop installation

2. Various indoor cabling solutions. Especially used in good laying conditions


Characteristics:

1. Novel groove design, easily strip and splice, simplified installation and maintenance, higher tensile strength
2. Suitable for outdoor pipelines introduced indoors
3. Better waterproof performance and more safety

Standards

Comply with standard YD/T 1258.4-2005 as well as IEC 60794-2-20/21.

Technical Parameters

Cable Type
Cable Diameter (MM)

Tensile Strength

Long/Short Term N

Crush Resistance

Long/Short Term N/100MM

Bending Radius

Static/Dynamic MM

GJYXFH03-1FO 6.5 400 600 300 1000 10D 20D
GJYXFH03-2FO 6.5 400 600 300 1000 10D 20D
GJYXFH03-4FO 6.5 400 600 300 1000 10D 20D

Packing & Shipping

GL FIBER provides a full range of customized fiber optic cable packaging solutions carefully matching your unique needs.

Starting with customized packaging printing, your brand LOGO, safety warnings or specific information can be printed directly on the packaging carton boxes and packaging spool, which not only enhances the brand image, but also ensures the accuracy and efficiency of on-site identification.

Whether it is wooden reel that pursue natural texture and environmental protection concepts, or iron reel that emphasize sturdiness and durability, we present them all to ensure the best protection of optical cables during transportation and storage.

Besides, for large-scale deployment and international transportation needs, we provide flexible container packaging options - whether it is a standard 20-foot container, suitable for compact space and flexible deployment; or a spacious 40-foot container, which can meet the needs of large-scale projects. For one-stop transportation, we can accurately adapt to ensure the safe arrival of goods.


Loading Quantity Advice
20'GP container 1KM/roll 600KM
2KM/roll 650KM
40'HQ container 1KM/roll 1100KM
2KM/roll 1300KM
*Standard length:1000m; Other length is also availabe
*The above is just advice for container loading, please consult our sales department for the specific quantity.
