In 2022. GL CABLES' ASU (Mini ADSS) cable has passed the ANATEL cerifcation in Brazi. 0CD (ANATELsubsidiany) cerifcate number. N" 15901-22-15155, certifcate query website. https://sistemas.anatel.gov.br/mosaico /sch/publicView/listarProdutosHomologados.xhtml.

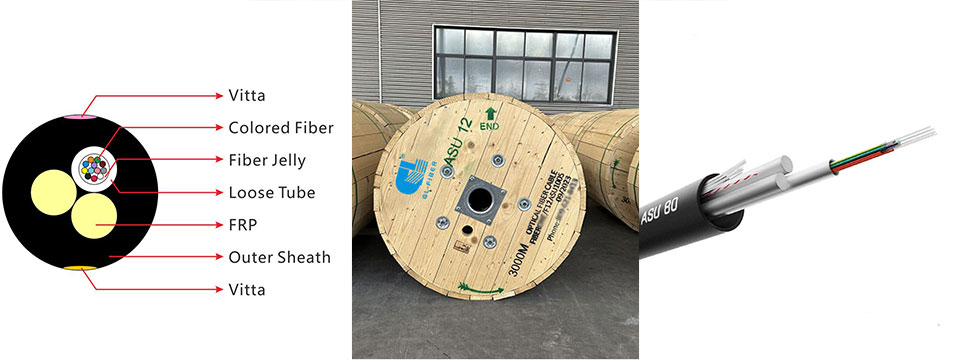

The ASU fiber optic cable (GYFFY) is widely used in south America, especially in Brazil, Peru and Ecuador Colombia, etc. Every year we export 80000km per year !
The ASU fiber optic cable offered by GL CABLES are designed, manufactured and tested according to the standards as follows:
| ITU-T G.652.D | Characteristics of a single-mode optical fiber |
| IEC 60794- 1- 1 | Optical fibre cables-part 2: Generic specification-General |
| IEC 60794- 1-21 | Optical fiber cables- part1-21-Generic specification-Basic optical cable test procedure-Mechanical test methods |
| IEC 60794- 1-22 | Optical fiber cables- part1-22-Generic specification-Basic optical cable test procedure-Environmental test methods |
| IEC 60794-4- 20 | Optical fibre cables-part 3- 10: Outdoor cables - Family specification for self-supporting aerial telecommunication cables |
| IEC 60794-4 | Optical fibre cables-Part 4: Sectional specification-Aerial optical cables along electrical power line |
|
Cable Type (Increased by 2 fibers) |
Fiber Count |
Cable Weight kg/km |
Cable Diameter mm |
Tensile Strength Long/Short Term N |
Crush Resistance Long/Short Term N/100mm |
Bending Radius |
| ASU-80m-6F | 2~24 | 40 | 6.2 | 500/1000 | 300/1000 | 10D/20D |
| ASU-100m-12F | 2~24 | 45 | 6.6 | 500/1200 | 300/1000 | 10D/20D |
| ASU-120m-24F | 2~24 | 65 | 8 | 600/1500 | 300/1000 | 10D/20D |
Optical fibre cables supplied in compliance with this specifications is capable to withstand the typical service condition for a period of twenty-five (25) years without detriment to the operation characteristics of the cable.
GL CABLES Supply ASU (MINI ADSS) fiber optic cable for 80m, 100m, 120m span, We can customize the number of cores of ASU cables according to customer needs. The number of cores of mini ADSS cable is 2, 4, 6, 12, Up to 24 cores. Contact us for Quotation & Free Samples! Email: info@gl-fibercable.com, Whatsapp:+86 18508406369
