What Is PM Fiber? A Manufacturer's Guide to Polarization Maintaining Fiber

Polarization Maintaining Fiber (PM Fiber) is a specialized type of single-mode optical fiber designed to transmit linearly polarized light while preserving its polarization state during propagation. Unlike standard single-mode fiber, where random birefringence caused by manufacturing imperfections and environmental factors can unpredictably alter the polarization state, PM Fiber maintains a stable and controlled polarization output.

At GL FIBER, we manufacture PM Fiber using advanced PCVD process technology, serving customers across fiber gyroscopes, precision sensing, industrial lasers, and next-generation AI data center interconnects.

Why PM Fiber Matters?

In standard single-mode fiber, external disturbances such as bending, temperature fluctuations, and mechanical stress introduce random birefringence. This causes the polarization state of transmitted light to change unpredictably, which severely degrades performance in polarization-sensitive applications.

PM Fiber does not eliminate birefringence. Instead, it introduces a strong, stable, and intentional high birefringence through specialized structural design. This deliberate birefringence overwhelms the effects of external disturbances, allowing the polarization state to remain stable throughout transmission.

Key Performance Parameters

When selecting PM Fiber, technical buyers should focus on the following critical specifications:

Parameter Definition Why It Matters?

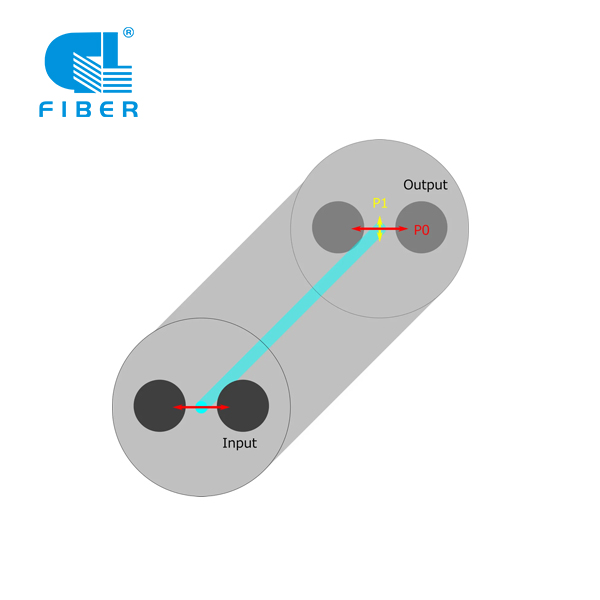

Extinction Ratio (PER) Ratio of optical power in the primary axis to leakage power in the orthogonal axis, measured in dB Higher values indicate purer polarization maintenance and lower crosstalk
Beat Length Length required for a 2π phase difference between two orthogonal polarization modes Shorter beat length indicates stronger birefringence and better polarization maintenance
Crosstalk Degree of optical power coupling from one axis to the orthogonal axis Lower crosstalk values (more negative dB) indicate superior performance
GL FIBER's PM Fiber products deliver ultra-high extinction ratio, low crosstalk, and short beat length, ensuring reliable performance in the most demanding applications.

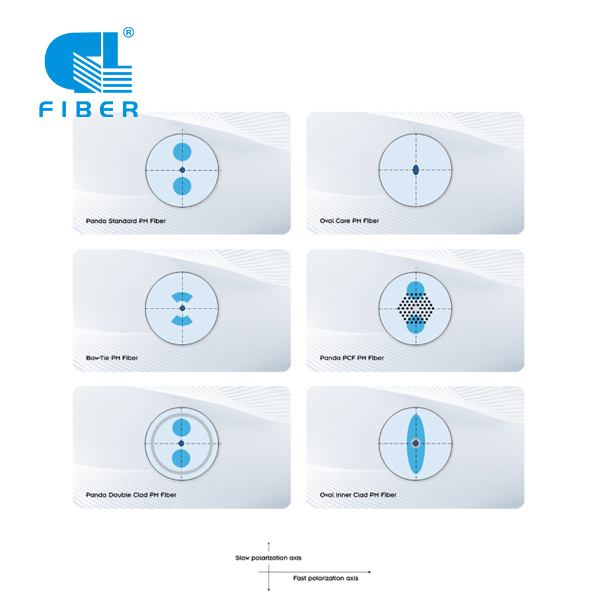

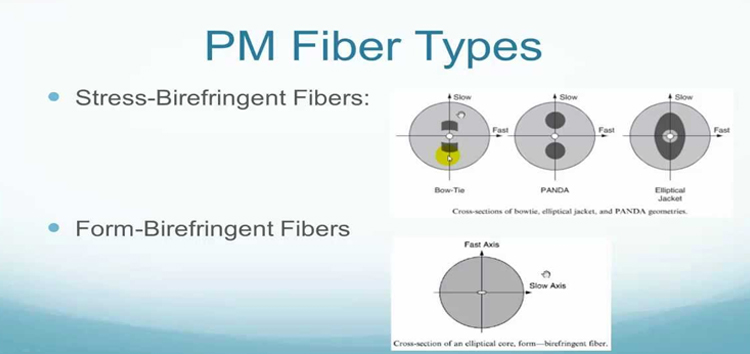

Main Structures and Types

PM Fiber can be classified into several structural types based on how birefringence is generated:

Type Structure Advantages Applications

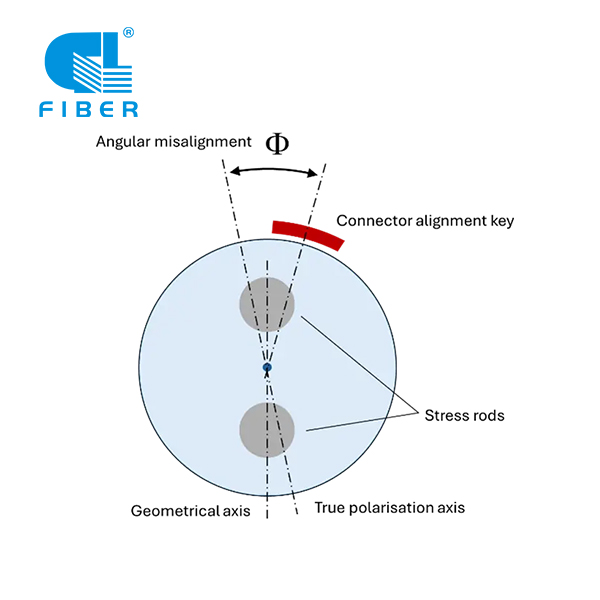

Panda Type Two cylindrical stress rods symmetrically embedded on both sides of the core Most mature and widely used, excellent performance, suitable for mass production Fiber gyroscopes, general polarization-sensitive systems
Bow-Tie Type Stress regions shaped like a bow-tie, symmetrically distributed Higher birefringence, superior polarization maintenance, strong resistance to environmental interference High-precision fiber gyroscopes, ultra-sensitive sensing systems
Elliptical Cladding Type Geometric asymmetry (elliptical core or cladding) generates birefringence without stress rods Excellent temperature stability, low stress sensitivity Special scenarios with high temperature requirements

GL FIBER offers a comprehensive PM Fiber product line, including:

• Conventional PM Fiber — Baseline models for general applications
• Bending Insensitive PM Fiber — Suitable for small bend radius applications
• Small Mode Field PM Fiber — For specialized components
• Reduced Diameter PM Fiber — For miniaturized devices

Major Application Markets

PM Fiber is a high-value specialty fiber, and its applications are rapidly expanding from traditional defense sectors to emerging commercial markets.

1. Fiber Gyroscopes
This is the largest application market for PM Fiber, accounting for approximately 51% of total demand. Fiber gyroscopes are core sensors in aerospace, missile guidance, and satellite attitude control systems. PM Fiber performance directly determines gyroscope accuracy.

2. Fiber Hydrophones
Used in ocean exploration and sonar systems, PM Fiber ensures the stability of interference signals.

3. Fiber Lasers and Amplifiers
In high-power laser systems, PM Fiber is used to transmit and amplify polarized light.

4. AI Data Centers (Emerging Growth)
In next-generation optical interconnect architectures such as CPO (Co-Packaged Optics) and NPO (Near-Packaged Optics), PM Fiber is used for connections between optical engines and external laser sources. This is a current market hotspot with significant growth potential.

5. Commercial Aerospace
With the development of commercial satellites, there is increasing demand for radiation-resistant PM Fiber, making domestic substitution an important trend.

Global Market Demand

The largest regional markets for PM Fiber are:

Region/Country Market Share Key Drivers

• North America (US) ~33% Fiber gyroscopes, aerospace & defense, AI data centers
• Europe (Germany, France, UK) ~28% Industrial lasers, fiber sensing, defense hydrophones
• China ~20%, fastest growing AI computing (CPO), domestic substitution, fiber lasers
• Japan/South Korea High-precision manufacturing Industrial lasers, sensing, optical communication components

The United States remains the largest single market, while China is experiencing the fastest growth. Industry forecasts suggest that domestic PM Fiber demand in China could grow by 10x to 20x within the next 1-2 years, driven primarily by CPO optical interconnects in AI computing infrastructure.

Why Choose GL FIBER?

As one of the top 3 global PM Fiber manufacturers, GL FIBER combines advanced manufacturing technology with strict quality control to deliver products that meet the highest industry standards.

Our advantages:

Advanced PCVD Process — Ensures precise geometric control and consistent performance

Factory-Direct Supply — Competitive pricing with stable supply capacity

Comprehensive Product Range — Conventional, bending-insensitive, small mode field, and reduced diameter PM Fiber

Custom Specifications — Tailored solutions for specialized component requirements

Proven Reliability — Products trusted in fiber gyroscopes, AI data centers, and precision sensing systems worldwide

Conclusion

PM Fiber is a critical enabling technology for applications where polarization stability is essential. From fiber gyroscopes in aerospace to CPO interconnects in AI data centers, PM Fiber ensures reliable, consistent performance in the most demanding environments.

As a leading manufacturer with advanced PCVD technology and a comprehensive product portfolio, GL FIBER is your trusted partner for PM Fiber solutions. Whether you need standard products or custom specifications, our team is ready to support your requirements.

Contact GL FIBER today to discuss your PM Fiber needs.
