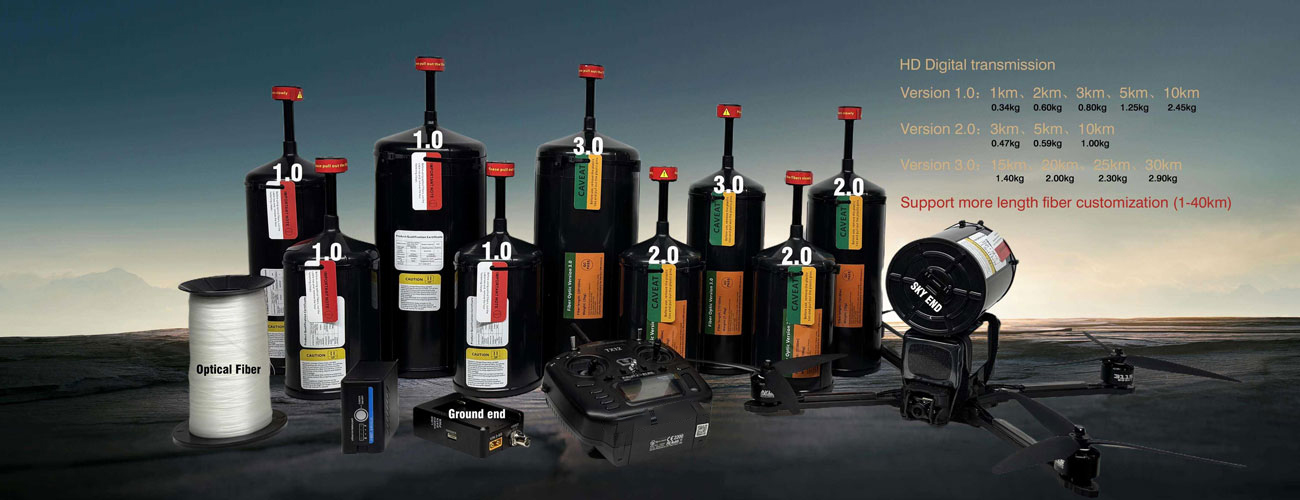

FPV Drone Optical Fiber Kit 0.5mm 0.6mm Fiber 5km 10km 15km 20km 25km 30km Option

Request a Quote

FPV Drone Fiber Optic Reels The Fiber Optic Reel offers a sleek, durable solution for storing and managing optical fibers with ease. Built for reliability, it ensures smooth cable deployment without straining the fiber. Key Features Material: ABS (Black) -Strong and lightweight. Custom Sizes: Flexible options Connector Compatibility: FC, ST, SC, LC. Fiber Support: G657A2, 0.27mm.Effortless Handling: Smooth cable deployment for any application.

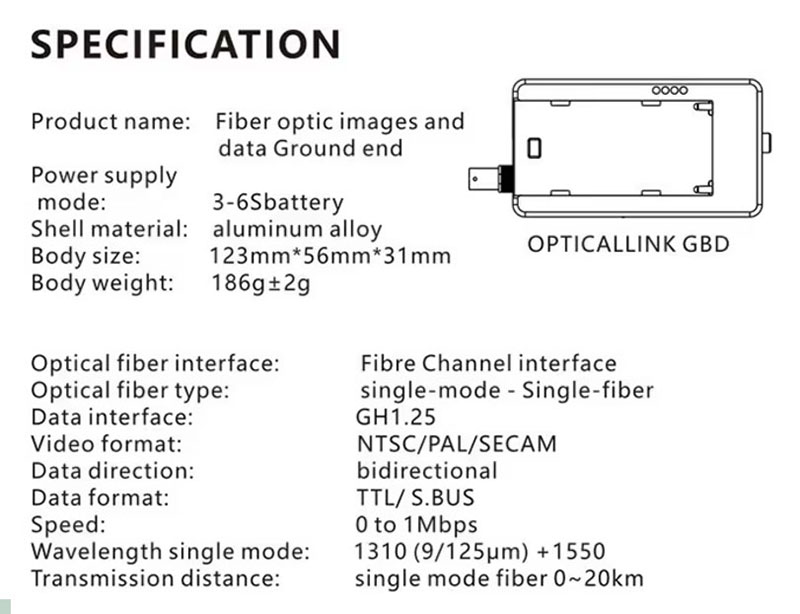

OPTICAL IMAGE AND DATA MODULE SPECIFICATION

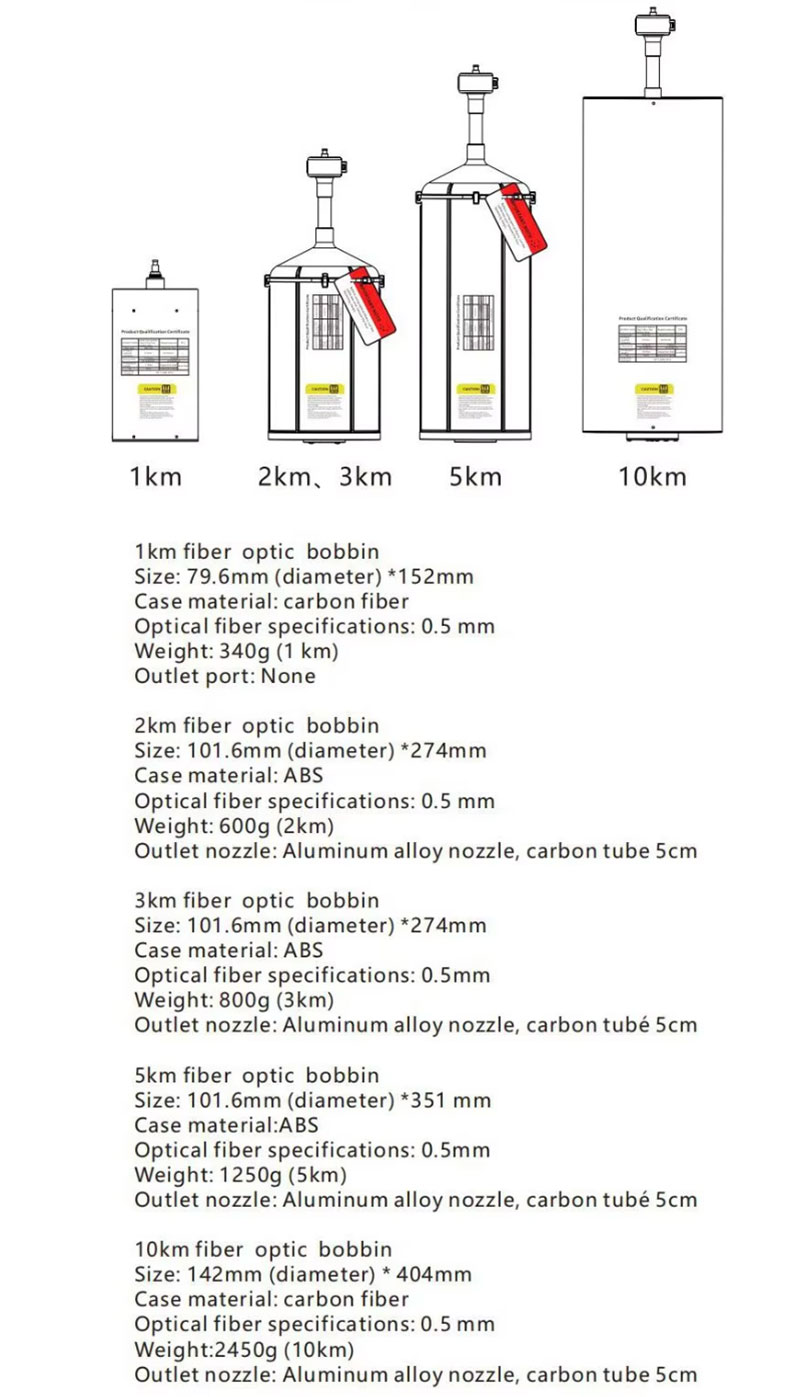

OPTICAL FIBER DISK SPECIFICATIONS

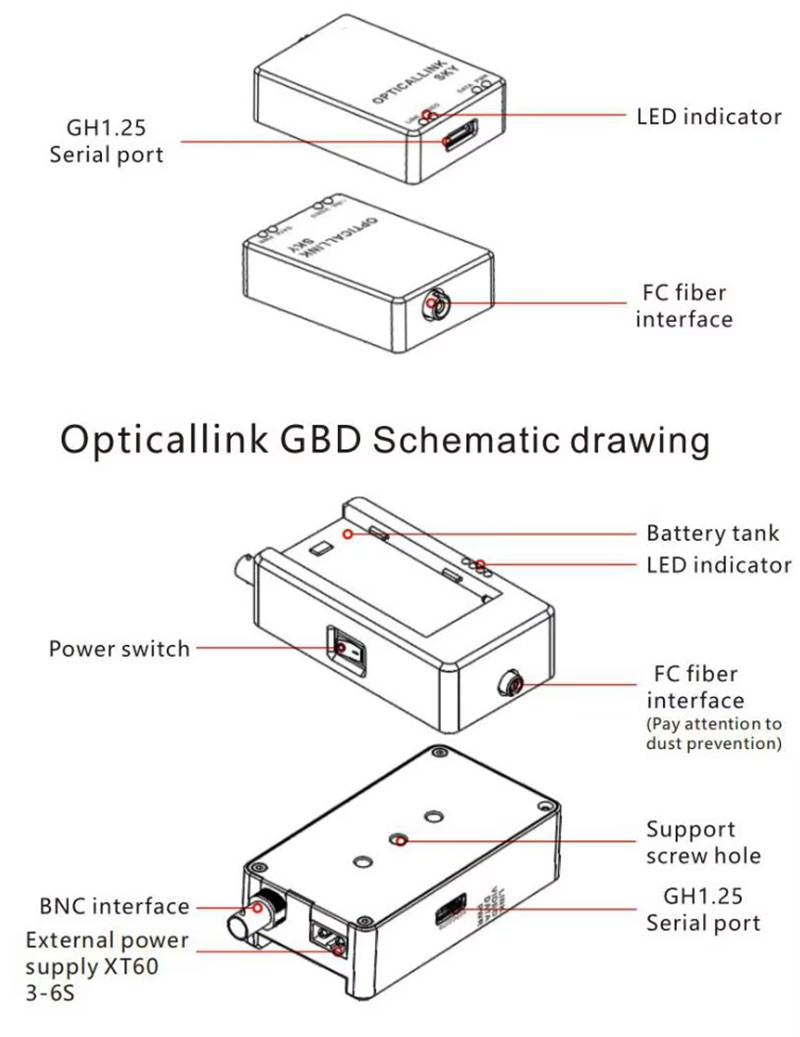

Opticallink SKY Schematic drawing

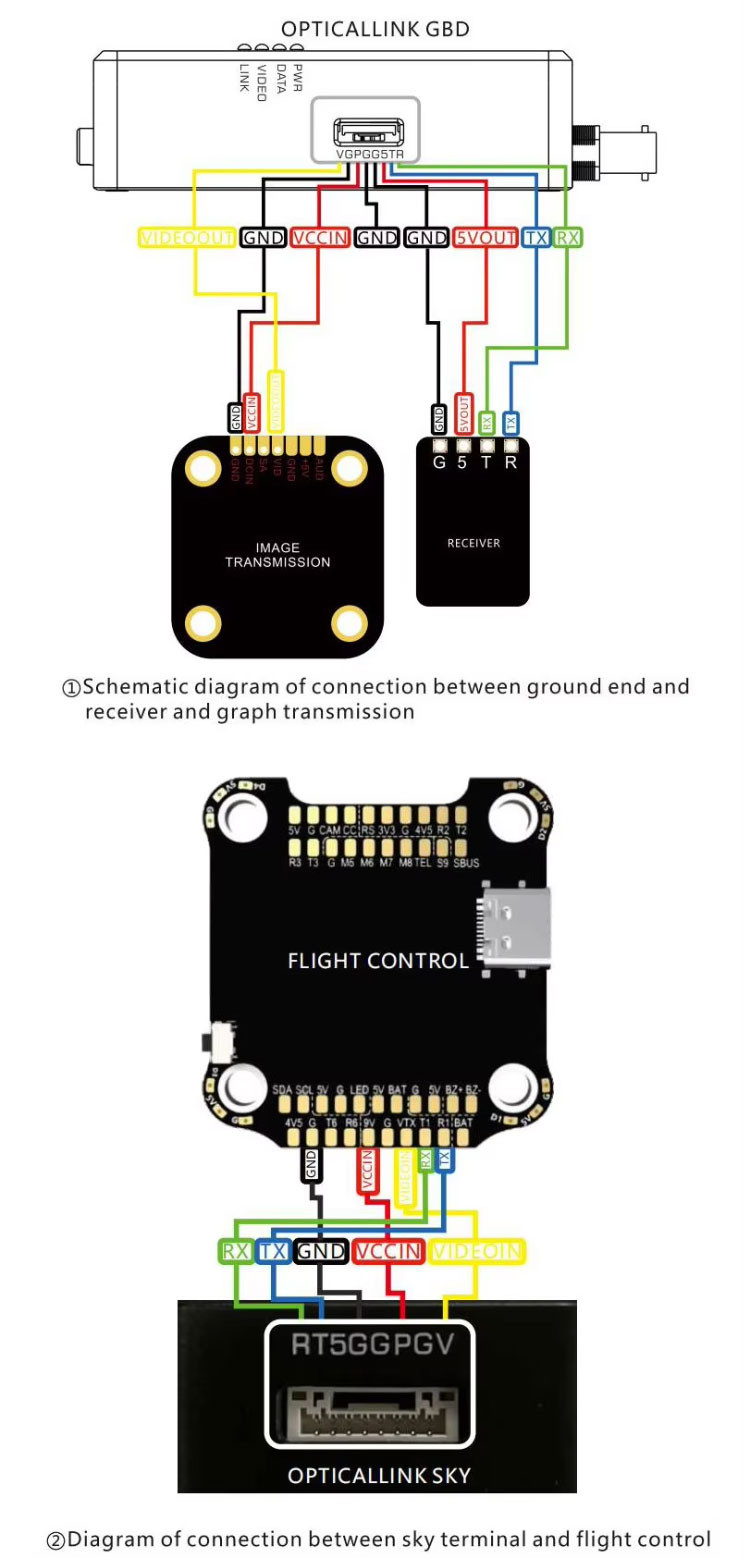

GROUND END WIRELESSCONNECTION MODE 1

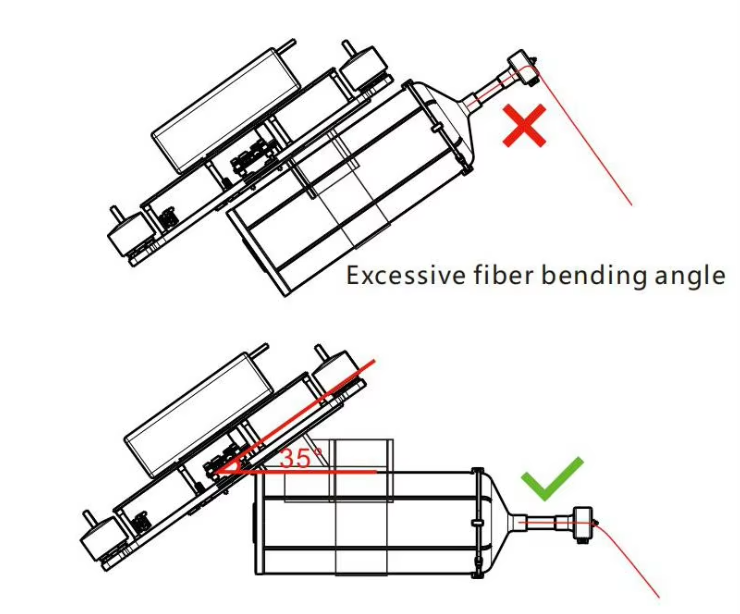

Installation Angle Diagram

Important Tips

2、Fiber optic disk installation should be based on the aircraft's tilt angle, the mounting bracket should be reserved for a certain tilt angle (as shown in the figure). The mounting angle should be close to the tilt angle, so that the fiber optic disk outlet angle is a horizontal position.

3、Fiber optic winding uses special glue, the first 2o0 meters of distance is the glue application area, in this area the flight speed of the aircraft should be controlled at 30km/h or 8m/s or less, to avoid high speed flight in the area with the glue.

4、Maximum flight speed of the aircraftshould be controlled within 120km/h.
